GUIDE PIN & GUIDE SLEEVE TUBE

KCF GUIDE PIN (W-PN,1-PM,PN-A)

  •


KCF GUIDE PIN

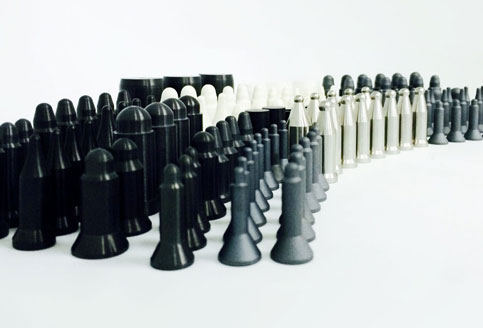

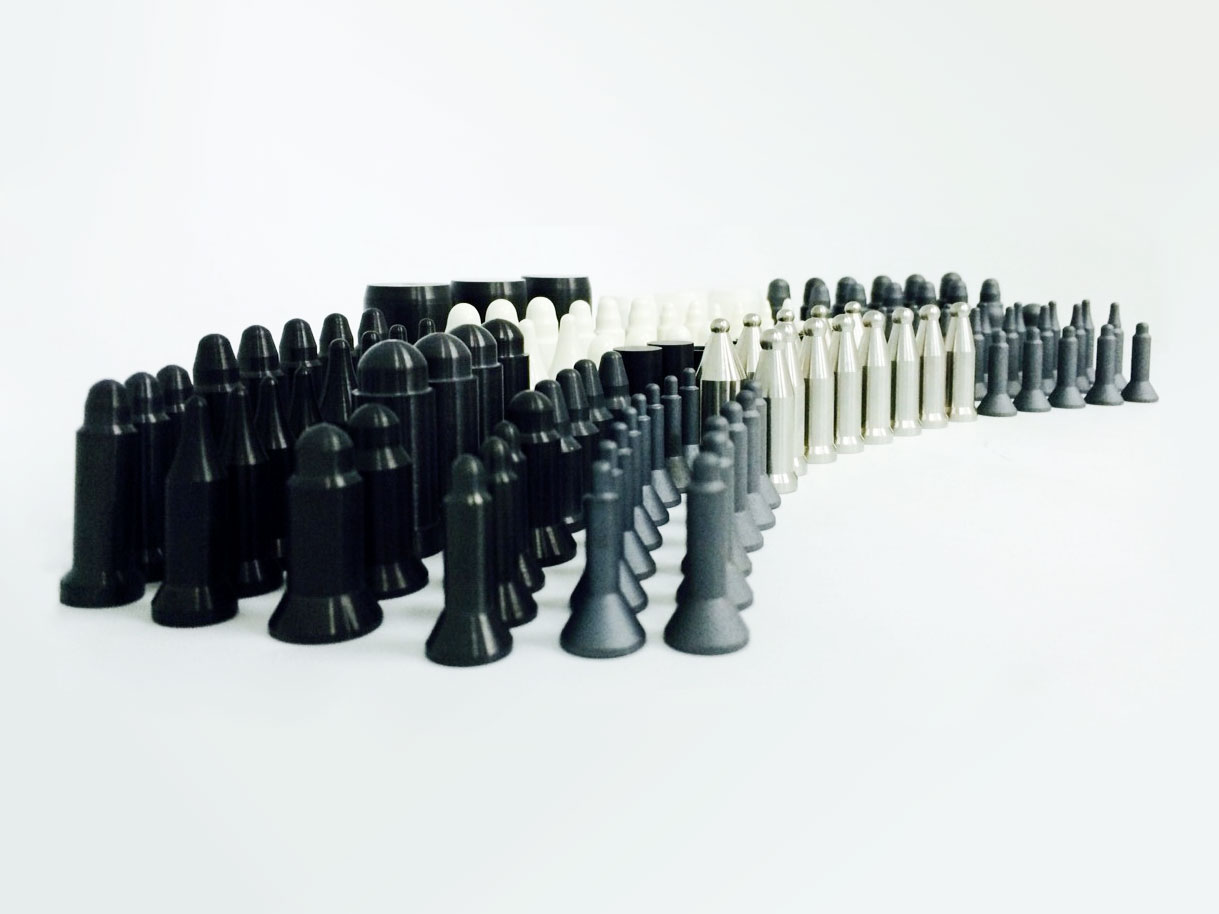

Interline Technology is a turnkey manufacture and a leader in providing variety in KCF Guide Pin category. Interline Technology provide the best product with strictly quality control, we offer many type of material; KCF, Silicon Nitride (Si3N4), Alumina (Al2O3).


Ceramic (solid) Traditionally Silicon Nitride
-fully insulated.		 Grey, White, Beige, Blue High intial cost but will last longer than any other pin when conditions allow. Sosceptible to damage. Repels weld spatter.
KCF A special heal treated alloy with a hard,insulating skin Grey / Black A low cost pin with a reasonable lifespan
KCF Guide-Pins is not an insulation coating but a specially processed insulation material which does not peel.
Has been being used in resistance welding applications for several decades. It has an insulated skin on its surface. Any shape can be made quickly. Our standard shapes are the cheapest in the business.


W-PN Code

SIZE Code SIZE
A B L C D E Q R
M4 4P 4.8 12.0 29.0 6.5 5.5 7.5 2 11.0
M5 5P 5.8 12.0 30.0 8.5 7.5 6.5 2 15.0
M6 6P 6.8 12.0 31.5 11.0 9.5 5.5 3 23.6
M8 8P 8.8 12.0 31.0 12.0 10.5 4.0 3 21.7
M10 10P 10.8 16.0 34.5 14.0 12.0 5.5 4 22.3
M12 12P 12.8 16.0 36.0 17.0 15.0 4.0 4 27.0


PN-A Code

SIZE CORD NO. Ød ØD Ød1 L
M4 PN-A-4.8 4.8 12 3.1 4.0
M5 PN-A-5.8 5.8 4.0 5.0
M6 PN-A-6.8 6.8 4.8 5.5
M8 PN-A-8.8 8.8 6.6 6.0
M10 PN-A-10.8 10.8 16 8.3 8.5
M12 PN-A-12.8 12.8 10.3 10.0


I-PM Code

NUT SIZE SIZE
A B C D E F G L Q R
M4 3.2 4-7 10 5 2.0 22 4 31 2.5 9.0
M5 4.1 5-8 10 6 2.5 22 4 32 3.0 13.3
M6 4.9 6-10 10 7 2.5 22 3 32 3.5 15.5
M8 6.6 8-11 12 8 3.0 23 3 34 5.0 17.5
M10 8.5 10-13 15 10 3.5 24 3 37 7.0 30.5
UNIFY 9.7 11-14 16 12 4.0 24 3 39 8.0 37.5
M12 10.4 12-15 16 12 4.0 24 3 39 9.0 41.0


KCF SLEEVE TUBE

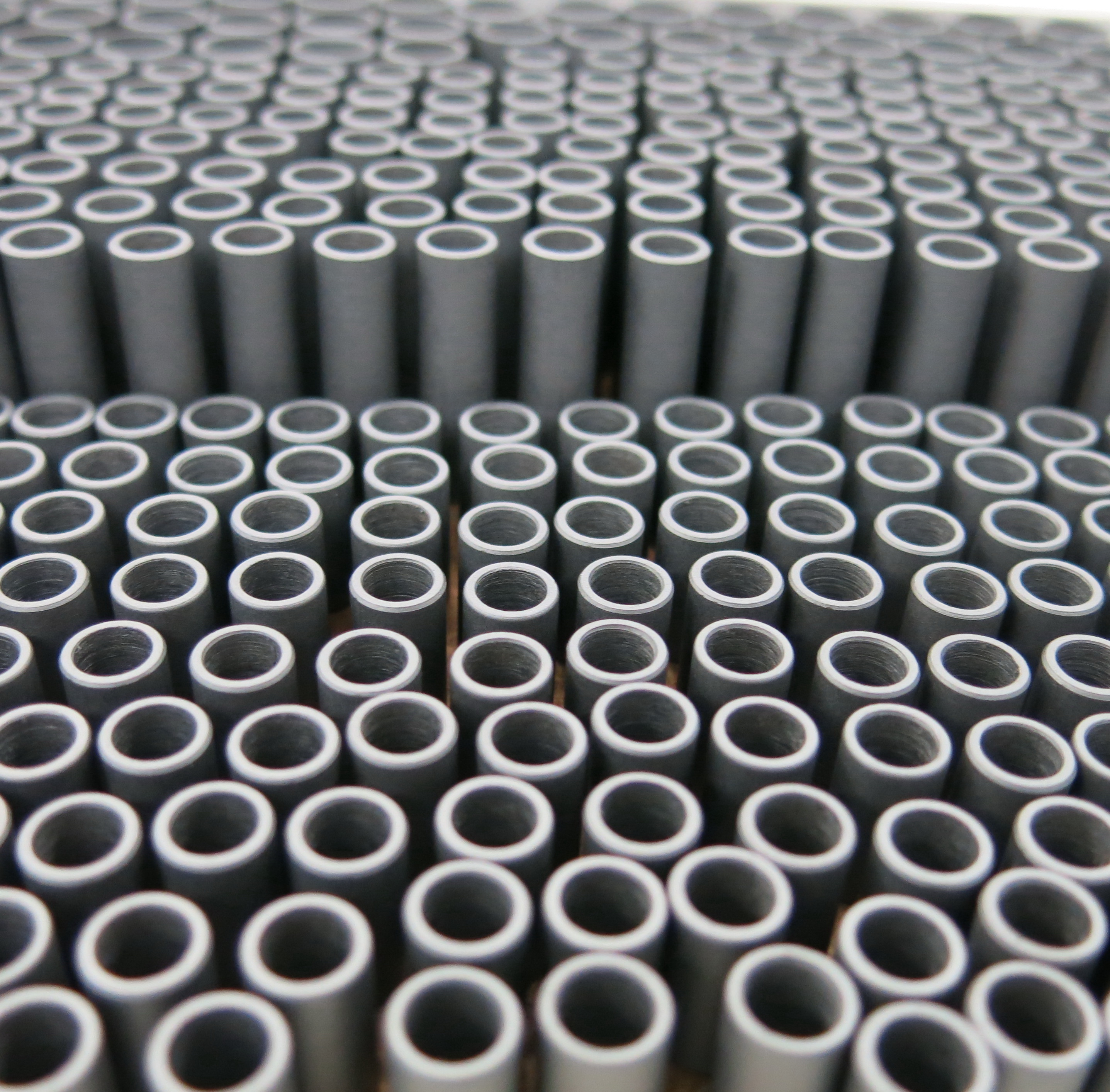

Interline Technology is an exert in Guide Sleeve Tube. We supply all "TOYOTA TYPE" and any custom design. Guide Sleeve material: KCF, Silicon Nitride (Si3N4), Alumina (Al2O3)

KCF-PA Code A (W-PN Code)

SIZE Code SIZE
A B L C D E Q R
M4 4P 4.8 12.0 29.0 6.5 5.5 7.5 2 11.0
M5 5P 5.8 12.0 30.0 8.5 7.5 6.5 2 15.0
M6 6P 6.8 12.0 31.5 11.0 9.5 5.5 3 23.6
M8 8P 8.8 12.0 31.0 12.0 10.5 4.0 3 21.7
M10 10P 10.8 16.0 34.5 14.0 12.0 5.5 4 22.3
M12 12P 12.8 16.0 36.0 17.0 15.0 4.0 4 27.0


KCF-PB Code A

Code Size
A B C
4 4.0 4.2 4.4 4.6 4.8 6.1 17
5 5.0 5.2 5.4 5.6 5.8 7.1 17
6 6.0 6.2 6.4 6.6 6.8 8.1 22
7 7.0 7.2 7.4 7.6 7.8 9.1 22
8 8.0 8.2 8.4 8.6 8.8 10.1 27
9 9.0 9.2 9.4 9.6 9.8 11.1 27
10 10.0 10.2 10.4 10.6 10.8 12.1 32
11 11.0 11.2 11.4 11.6 11.8 13.1 32
12 12.0 12.2 12.4 12.6 12.8 14.1 32
13 - 13.2 - - - 15.1 32
14 - 14.2 - - - 16.1 32
15 - 15.2 - - - 17.1 32
สอบถามข้อมูลเพิ่มเติม

Tel : (66)2721 7094 - 97
Hotline : 081-033-2998 , 081-573-0596

EMAIL.  info@interline49.com
